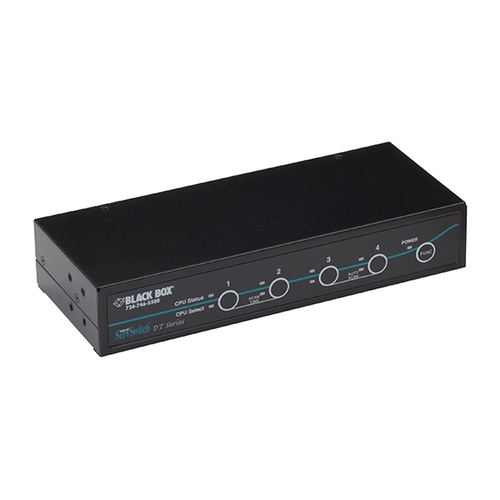

Set up desktop KVM switching with high-quality DVI-D video. These KVM switches enable you to access two or four USB-CPUs with high-resolution DVI video from a single workstation.
Desktop switching with high-quality DVI-D video
The DT DVI-I KVM Switch series supports the full DVI single link specification, allowing you to switch resolutions at up to 1920x1200 at 60Hz. You can also fine tune the signals, depending on your signal strength.
Bi-directional stereo audio support
All models support stereo-audio signal switching for speakers and microphones. Audio channels can be switched independently from USB and video.
Switches with emulated USB HID (KV9612A/KV9614A)
These switches offer convenient hotkey switching and support USB HID devices only. Up to four different USB HID peripherals including keyboard and mouse can be attached to the switch.
USB emulation means that unselected computers continue to see the identities of the keyboard and mouse. No enumeration is necessary when their link becomes active once again. This not only makes reconnecting faster, it also increases the switching reliability.

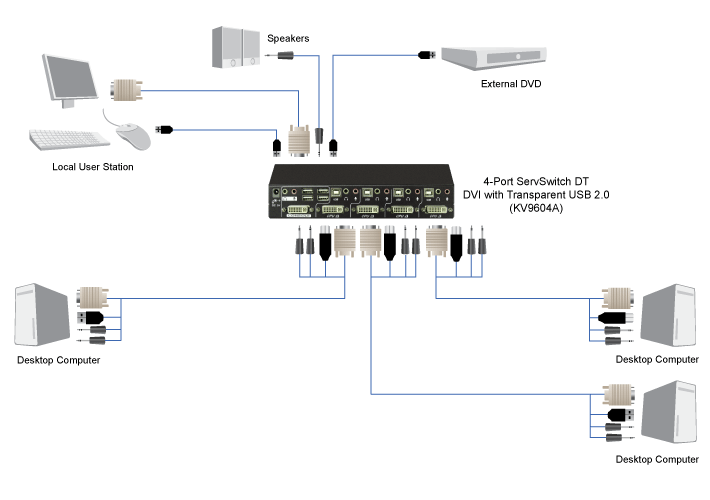

Switch with transparent USB 2.0 (KV9604A)
Switch DVI-D and audio signals with transparent USB 2.0 signals via push buttons. A built-in hub supports up to four USB peripherals.
Supported Operating Systems —
KV9612A/KV9614A: Windows® 98 SE/Me/2000/XP/7, Windows Vista®, Mac OS X, Linux®
KV9604A: Windows® 98 SE/Me/2000/XP, Windows Vista®, and Windows 7
User Controls —

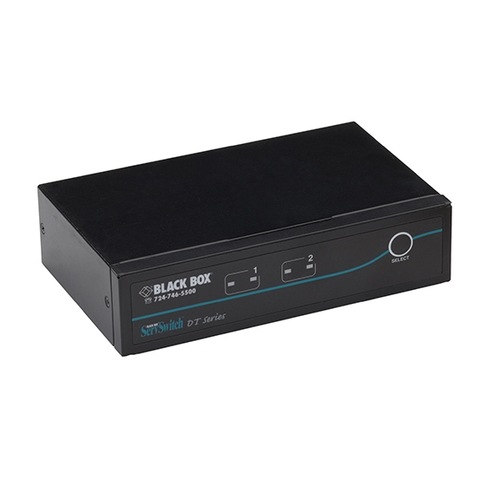

KV9612A: (2) port buttons (labeled 1–2) also used for Scan; time buttons and AutoScan, (1) function button, Hotkey command

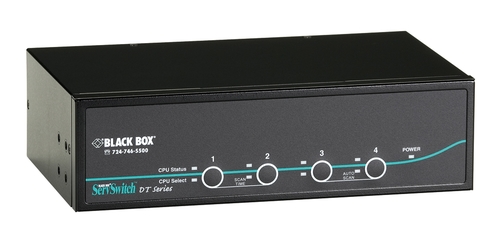

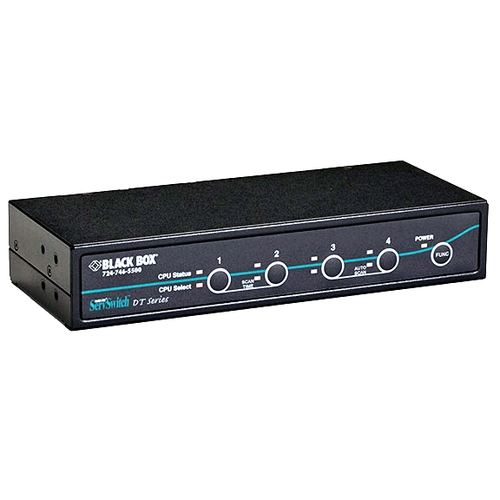

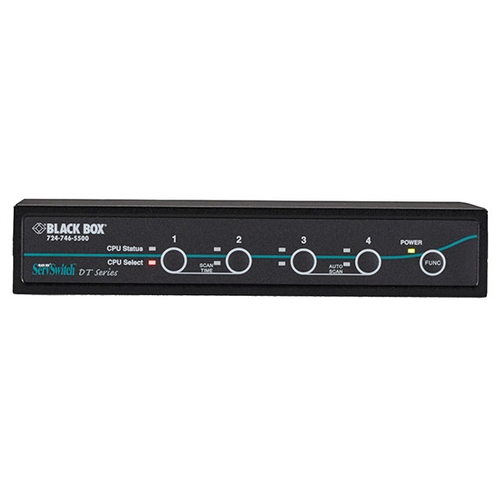

KV9614A/KV9604A: (4) port buttons (labeled 1–4) also used for Scan time buttons and AutoScan, (1) function button,Hotkey command (KV9614A only)
Video—
2-Port - DVI-I Connector for DVI-D Only;
4-Port - DVI-I Connector for DVI-D or VGA
Connectors —
KV9612A:
(3) DVI-I F;
(2) USB Type B F;
(4) USB Type A F;
(6) 3.5mm Audio Jacks;
(1) barrel connector for power

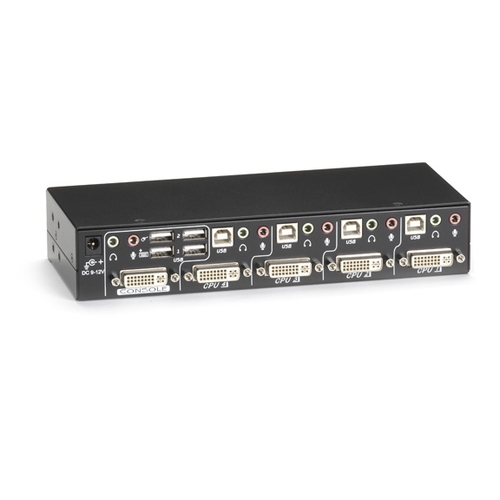

KV9604A/KV9614A:
(5) DVI-I F;
(4) USB Type B F;
(4) USB Type A F;
(10) 3.5mm Audio Jacks;
(1) barrel connector for power
Indicators — (4) LEDs for powered port; (4) LEDs for port selection
Control — (3) or (5) Front-Panel Push Buttons
Power — External: 100 to 240 VAC / 9-12 VDC
Temperature Tolerance —
Operating: 0 to +40° C;
Storage: -20 to +60° C
Size —
KV9604A/KV9614A: 4.4H x 22W x 13D cm,
KV9612A:15.87H x 9.84W x 3.81D cm
Weight —
KV9612A: 0,7kg;
KV9604A, KV9614A: 0.9 kg
TAA compliant — YES
(1) Switch
(1) Power Supply with Power Cord
(1) Set of Rubber Feet (4)

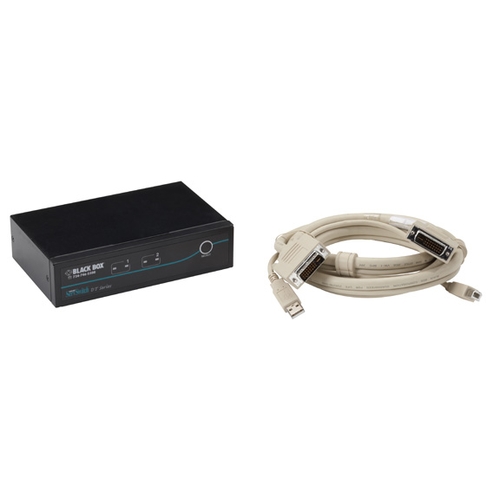

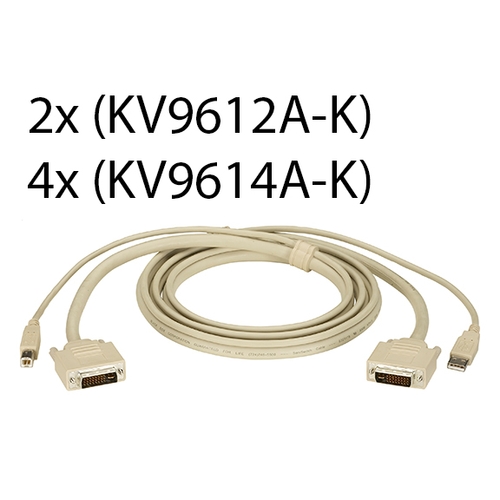

KV9612A-K also (2) DT Series CPU Cables (EHN900024U)

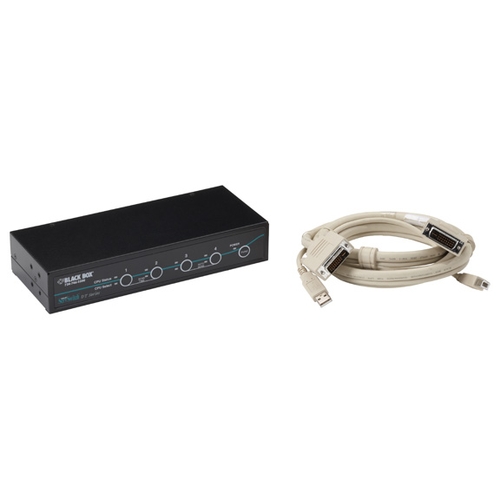

KV9614A-K also (4) DT Series CPU Cables (EHN900024U)
|
